Alumil - M 300 Falcon

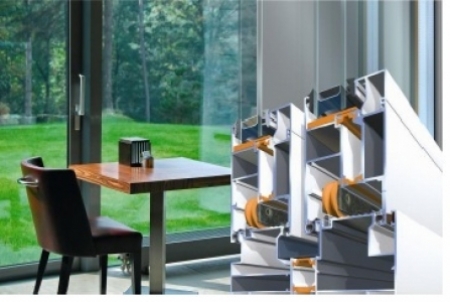

M300 Falcon Alutherm - sliding doors


This system is designed for large spaces such as hotels, cafes, restaurants and winter gardens.

62.5 mm width of the wing

PA 6.6 polyamide plates, 14.8 mm of the wing, 20 mm of the frame
Mechanism to lift and sliding of teflon roller and inox steel guide
Sealing with EPDM sealants
multispot lock
Possibility of placing the glass after the installation of window frames
Glazing or panel 20 - 48 mm
Ability to paint in different colors from inside and outside

Possible schemes of opening HERE.

Section of the triple-Lift HERE.

 Practical solution to close the corner space with this system HERE.
