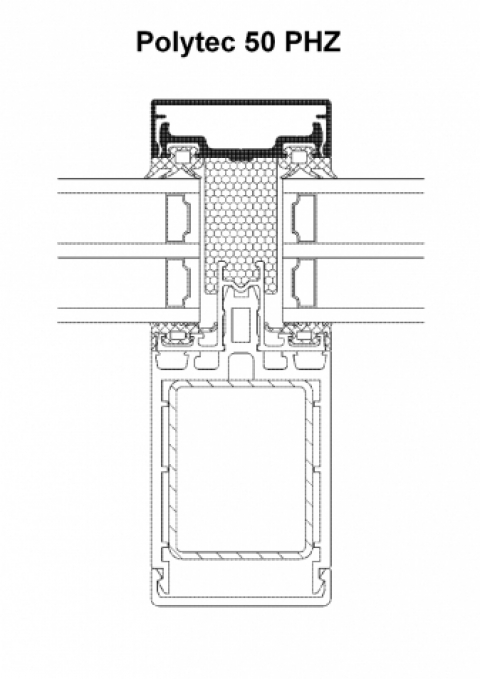

The facade system Rehau Polytec 50 PHZ represents construction made of columns and beams. The steel tubes, according to the requirements, are used for building of the carrying construction and form the statistical framework. The tubes are then extra dressed with PVC profiles.
Suspended facade suitable for energy efficient and passive houses.
Visible width: 50 mm
Heat isolation: 0,74 W/mlK – 0,76 W/mlK
Depth of the build in profile: 71 mm to 94 mm
Gasket during heavy rain: R7 according to DIN EN 12154
Air permeability: А4 съгласно prEN 12152
Noise insulation: RW = 43 dB (SSK 4)
